$800.00 $395.00

Manufacturer: Volteq

Stock Level: 5

Product Information

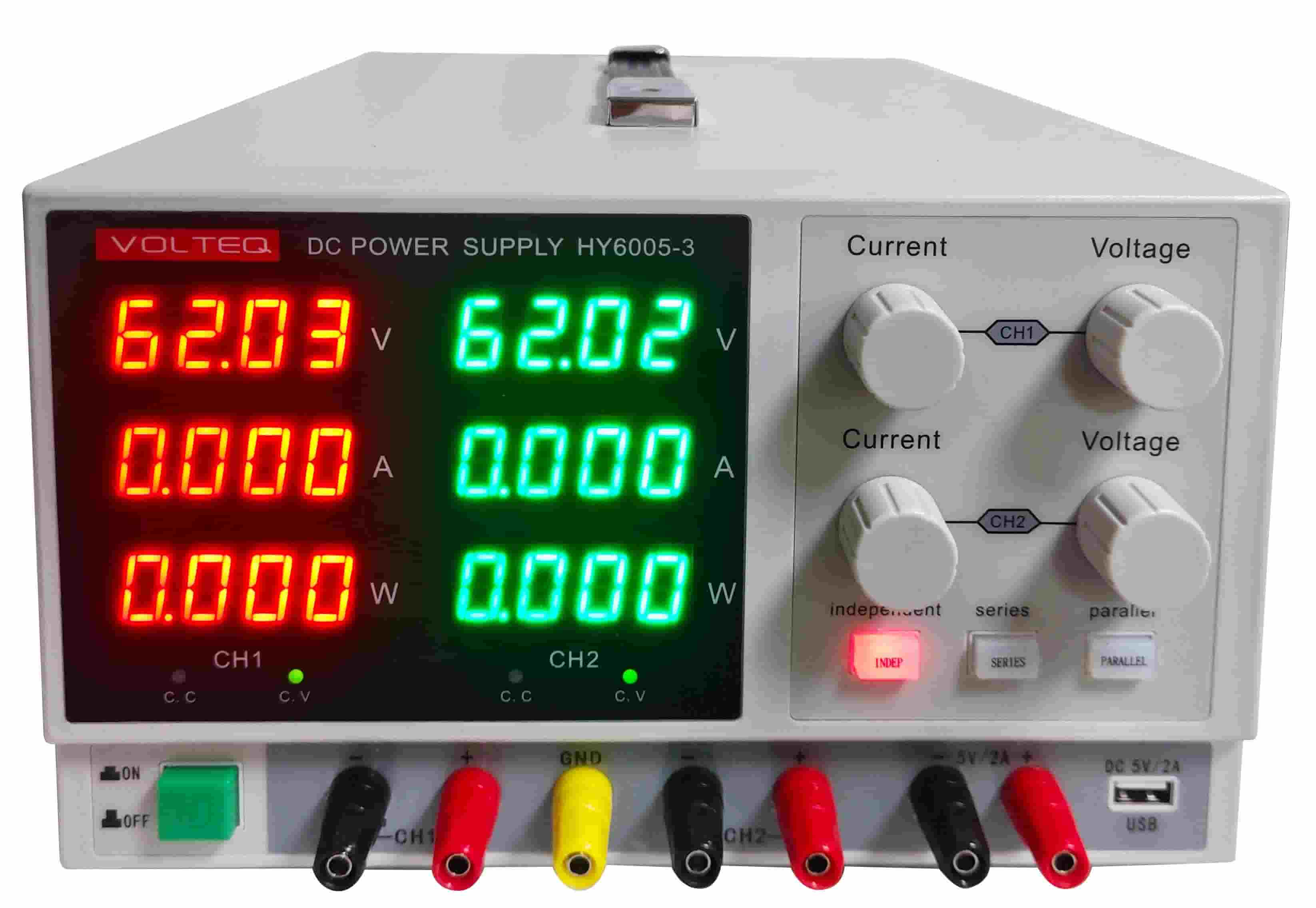

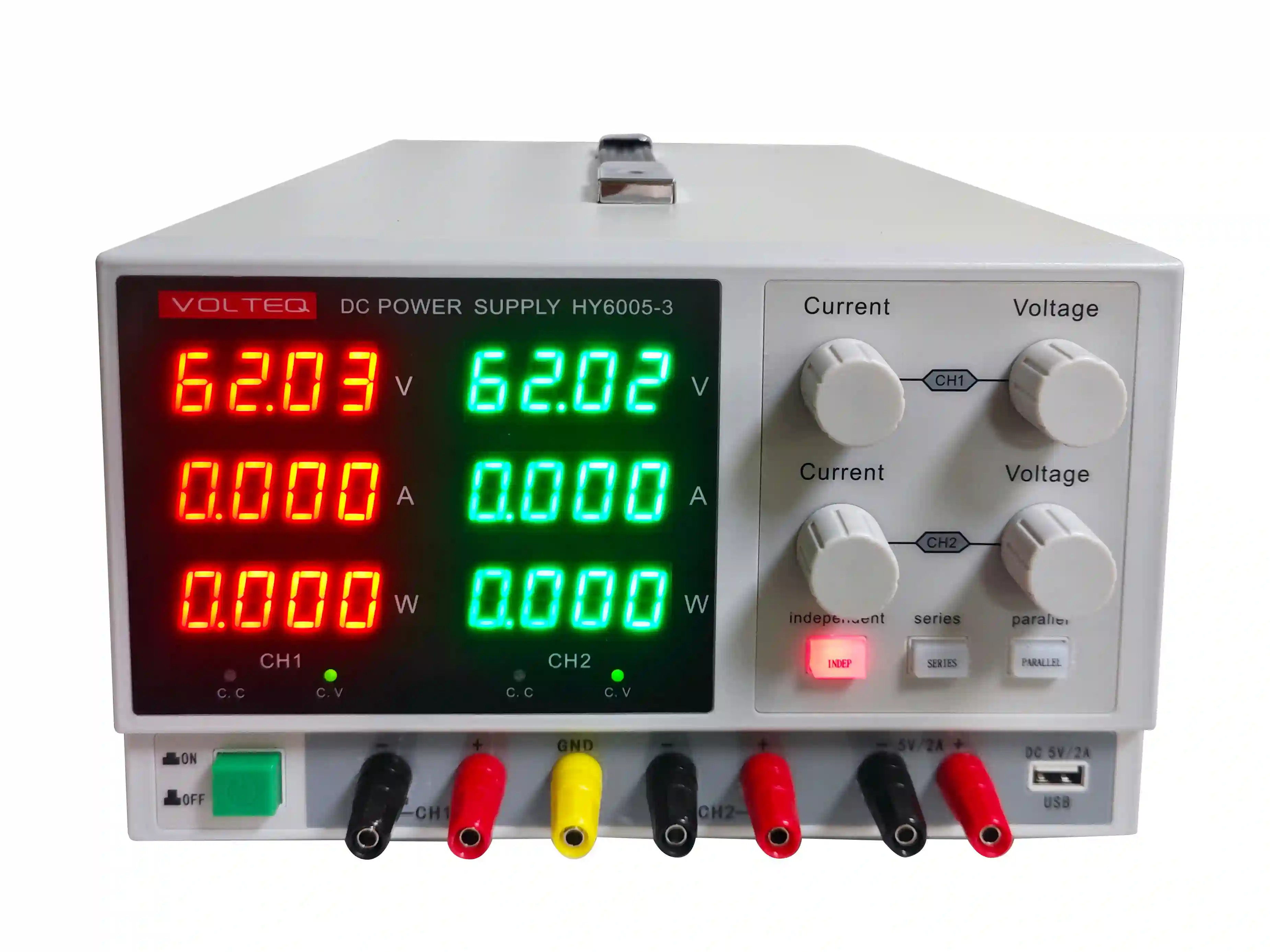

Volteq HY6005-3 is a lab grade DC regulated switching power supply, a high quality variable switching DC power supply with outputs that are continuously adjustable at 0-60V DC and 0-5A. What's more, the two outputs can be used either in independent, series or parallel mode, providing either two independent outputs, or one output with twice the voltage or twice the current output, up to 100V or 10A. The unit can be operated in either constant voltage or constant current mode, and comes with dual LED displays, providing accurate readout of the two outputs. Another additional 5V/1A output is also provided, as well as a USB charger.

Got a question? Call us at 408-622-9851.

Features & Specifications:

Dual adjustable outputs: 0-60V and 0-5A

Three operating modes: independent, series, parallel

Input voltage: 110V/220V AC switchable

Line regulation: CV <= 0.01% + 2 mV, CC <= 0.2% + 2 mA

Load Regulation: CV <= 0.01% + 3mV, CC <= 0.2% + 3 mA

Ripple noise: CV <= 0.5 mV RMS, CC <= 3 mA RMS

Protection: constant current and short-circuit protection

LCD reading accuracy: +/-1% for voltage and +/-2% for current

Environment: 0-40C, relative humidity < 90%

Size: 14" x 10" x 8"

Weight: 16 lbs

Warranty: 1 year

 Switching Power Supply HY30100EX
 Switching Power Supply HY30100EX

Product Code: HY6005-3
