High Current 1000A Power Supply for Electroplating Anodizing HY061000EX 6V

$5,500.00 $2,795.00

Manufacturer: Volteq

Stock Level: 6

Product Information

New Design! VOLTEQ HY061000EX is a high current 1000A electroplating power supply with built-in over-voltage and over-current protection, ideal for anodizing and plating applications in commercial metal finishing shops, as well as battery charging and DC motors. HY061000EX is one of the most powerful variable DC power supply we carry, with the maximum DC power of 6000W. This high quality plating rectifier can be continuously adjustable at 0-6V DC and 0-1000A. The current requirement on the AC line is 31A at maximum output of 6000W. Retails well over $5000.

Got a question? Call us at 408-622-9851.

Features & Specifications:

  • Easy control of both current and voltage outputs using a remote control box
  • Timer and alarm function allows easy control of process
  • Outputs: 0-6 V and 0-1000 A
  •  Protection: over-voltage and over-current protection
  • Input voltage: 220V -240V AC (No NEMA plug included)
  • Voltage Stabilization: <=0.5%
  •  Current Stabilization: <=1%
  • Load Regulation: <=0.5%
  • Ripple noise: CV <= 5%
  • LCD reading accuracy: +/-1% +/-1 digit
  • Replaceable filter on fans
  • Environment: 0-40C, relative humidity < 90%; no condensation
  • Size: 19" W x 25.25"L x 9.5"H
  • Weight: 95 lbs
  • Warranty: 1 year

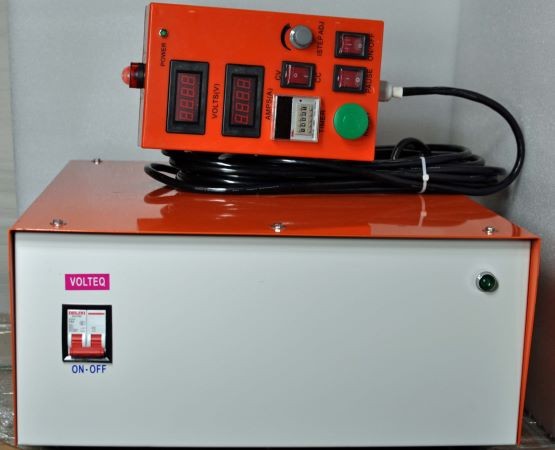

1000A DC Power Supply HY061000EX
1000A Plating Power Supply HY061000EX
1000A Plating Rectifier HY061000EX

Product Code: HY061000EX
