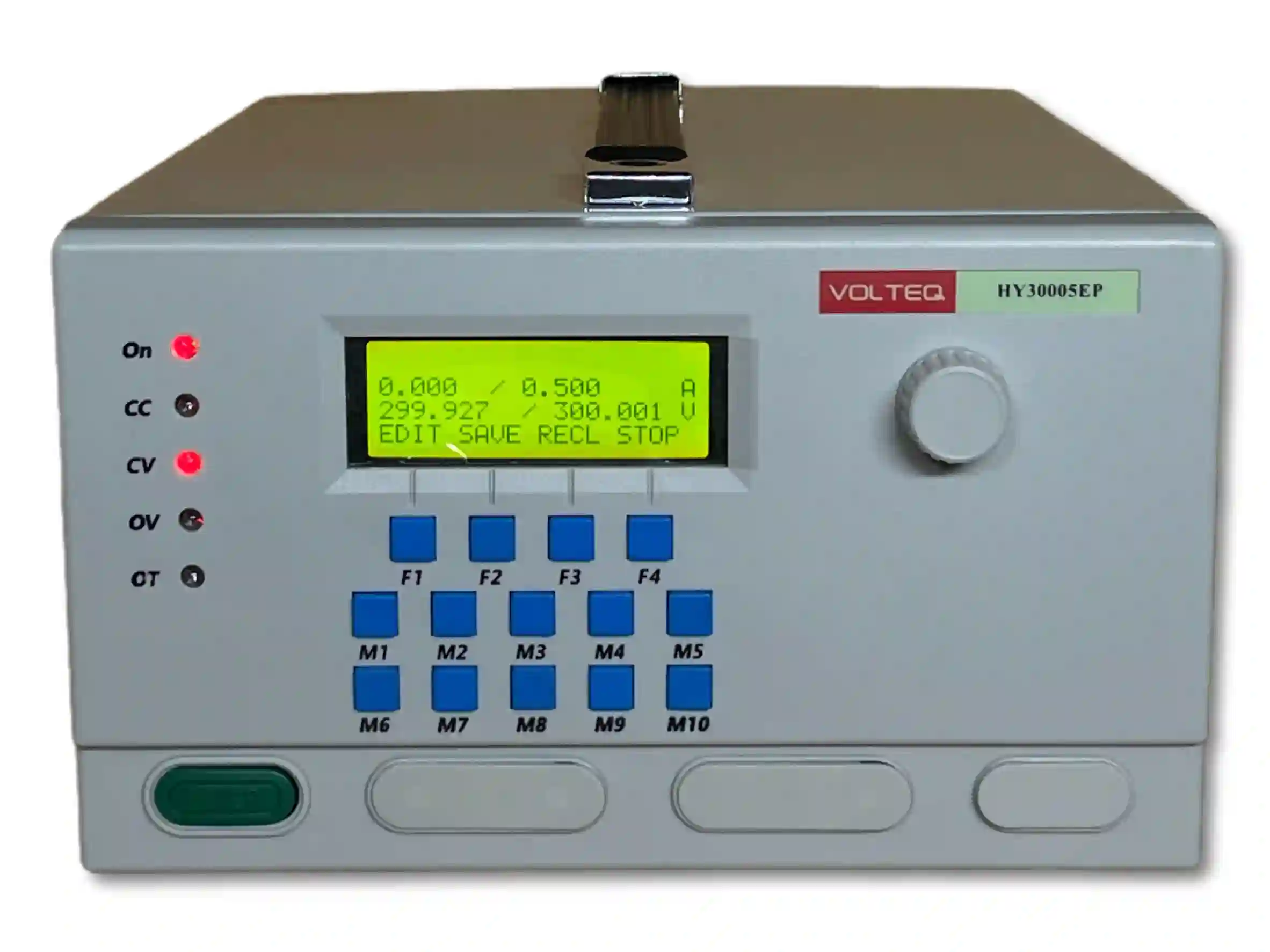

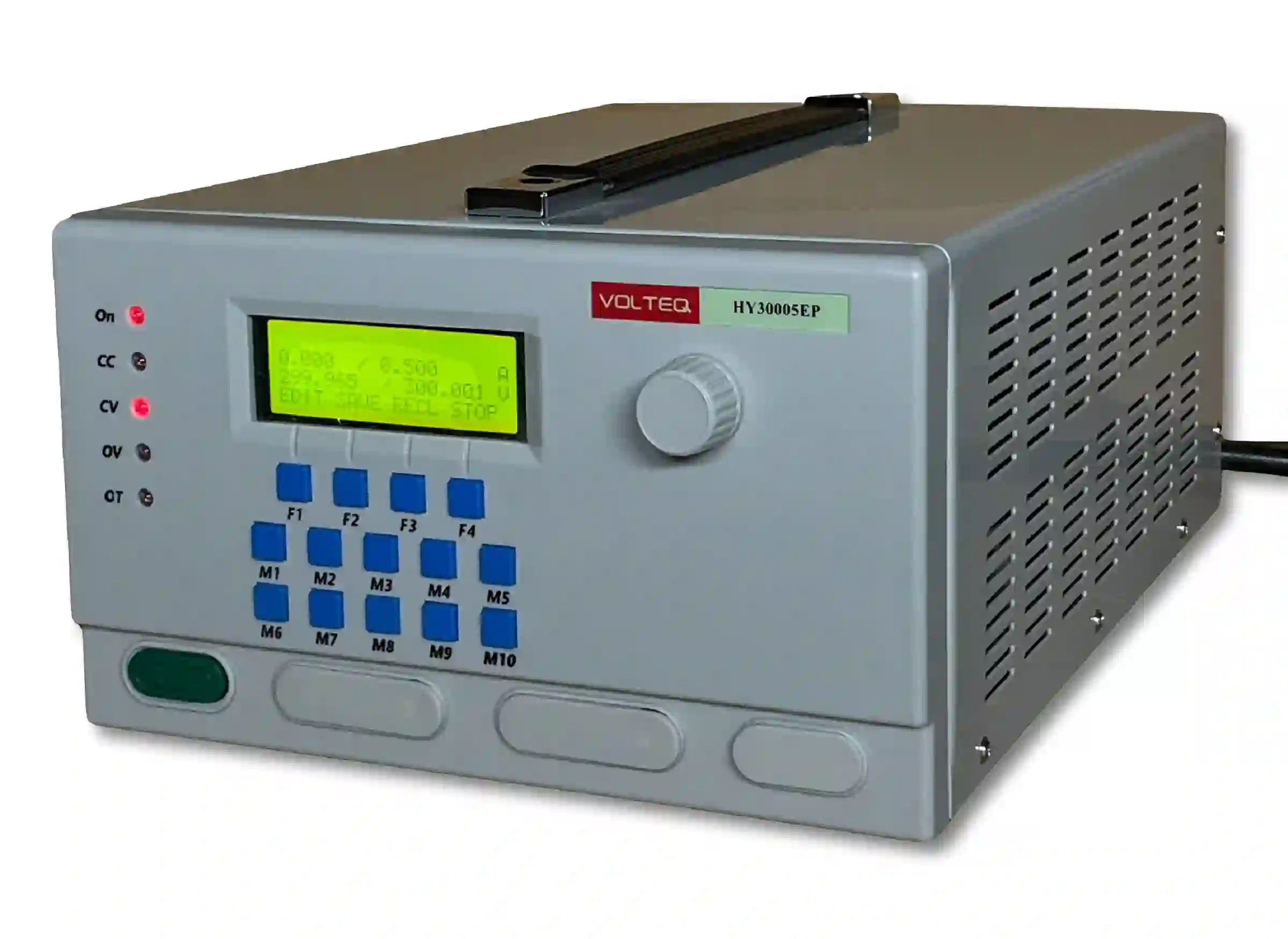

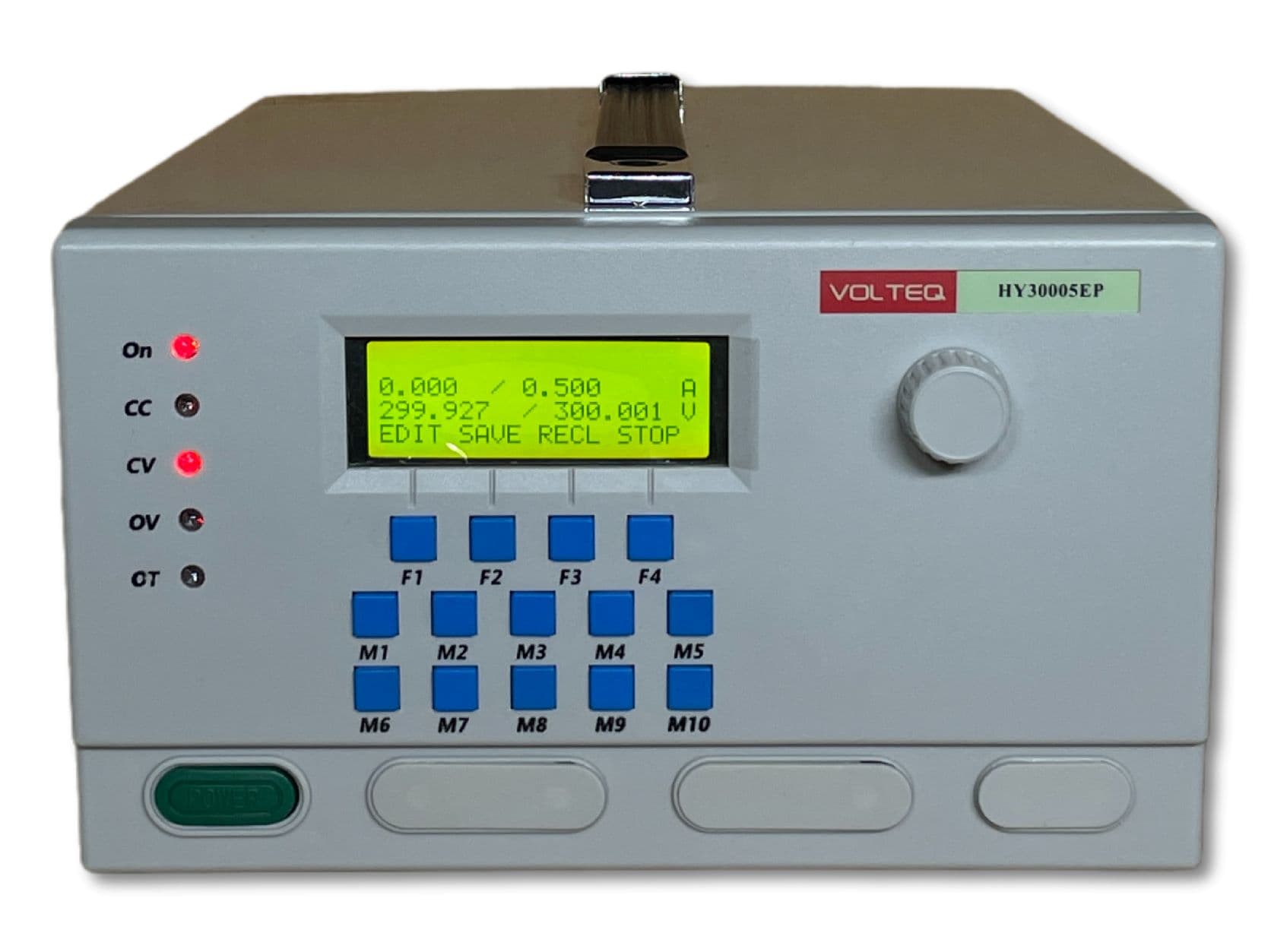

Volteq HY30005EP is a programmable DC power supply with built-in Arduino Micro controller. If you are familiar with Arduino, writing software code to control this power supply to run automatic testing is a piece of cake. We supply a sample code with rich set of features including ramping, amp-minute metering, remote sensing, active feedback control, etc. This power supply is ideally suited for computer controlled electrophoresis, automatic testing, battery charging/maintenance, DC/servo motors, anodizing and plating applications. We also provide up to 14 output/input pins for external data collection and control.
Key Features & Specifications:
-
4 Lines 20 characters LCD display
-
Active feedback for more stable output
-
Remote sensing
-
Amp-minute metering and control
-
Timer control
-
Voltage ramp
-
Automatic battery charger
-
Digital Voltmeter
-
Transient measurement
-
6 Groups of memories
-
4 Function keys (F1-F4) and 10 user definable keys (M1 - M10)
-
Control: digital control via front panel or via USB
-
Output enable and disable
-
Two level of control for both current and voltage outputs: coarse and fine for ease of use
-
Outputs: 0-300 V and 0-5 A
-
Protection: over-voltage protection
-
Input voltage: 110V AC and 220V AC switchable
-
Voltage Stabilization: <=0.2%
-
Current Stabilization: <=0.5%
-
Load Regulation: <=0.3%
-
Ripple noise: CV <= 1%
-
Environment: 0-40C, relative humidity < 90%
-
Size: 15.8" x 10" x 6"
-
Weight: 18 lbs
-
Warranty: 1 year
Product Code: HY30005EP
