Regulated Linear DC POWER SUPPLY HY3005DX 30V 5A 1mA Resolution

$240.00 $109.95

Manufacturer: Volteq

Stock Level: 20

Product Information

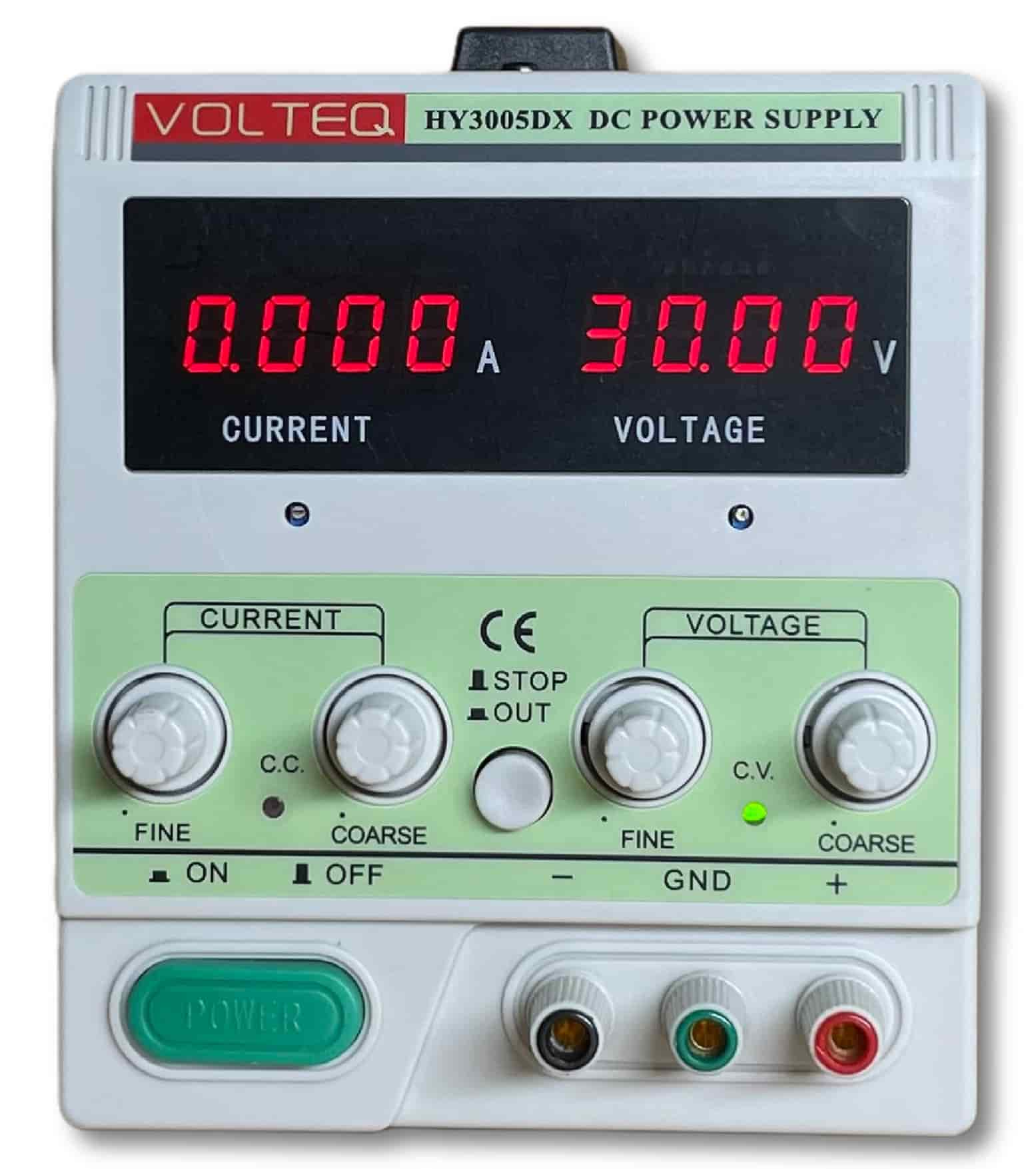

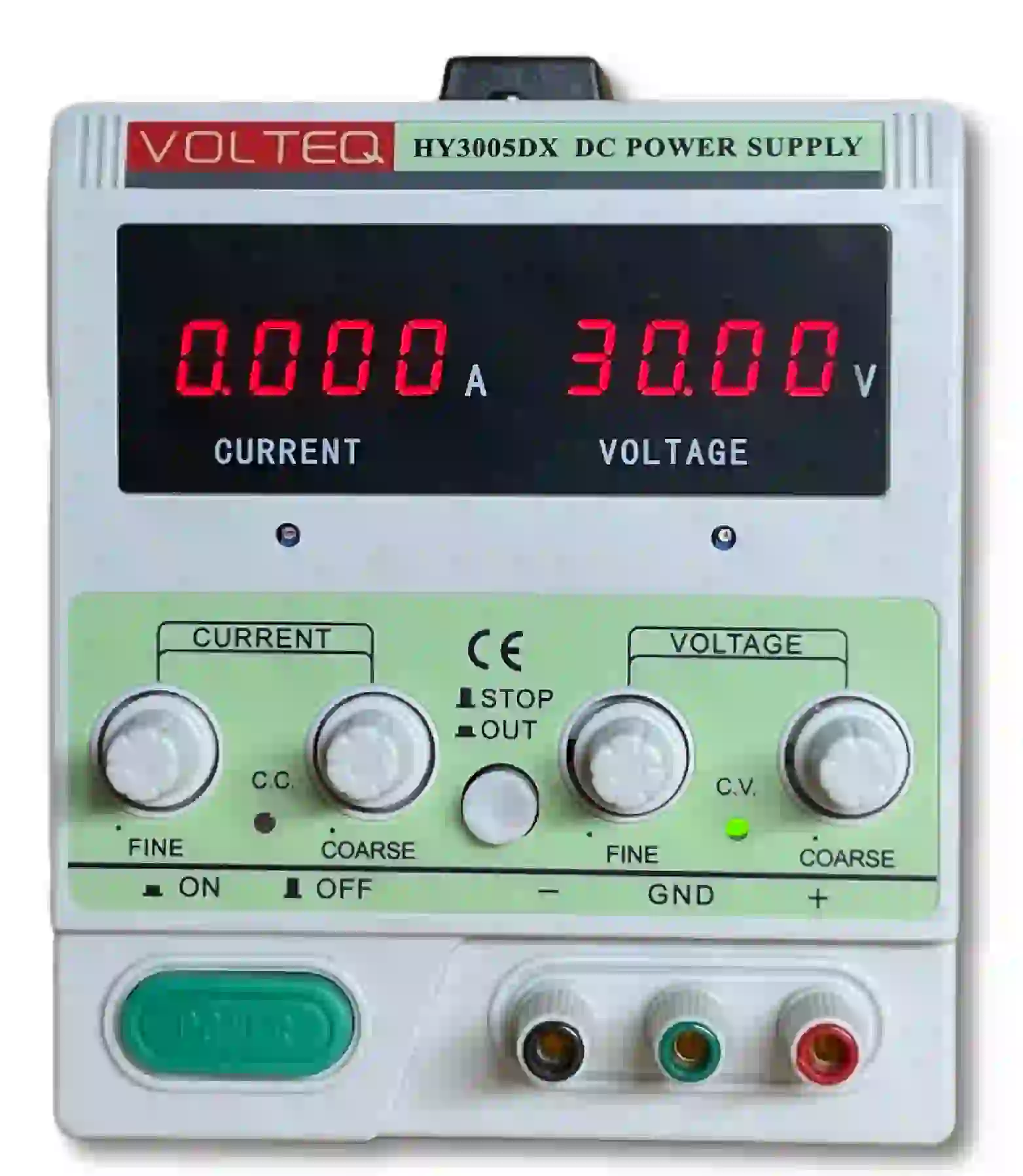

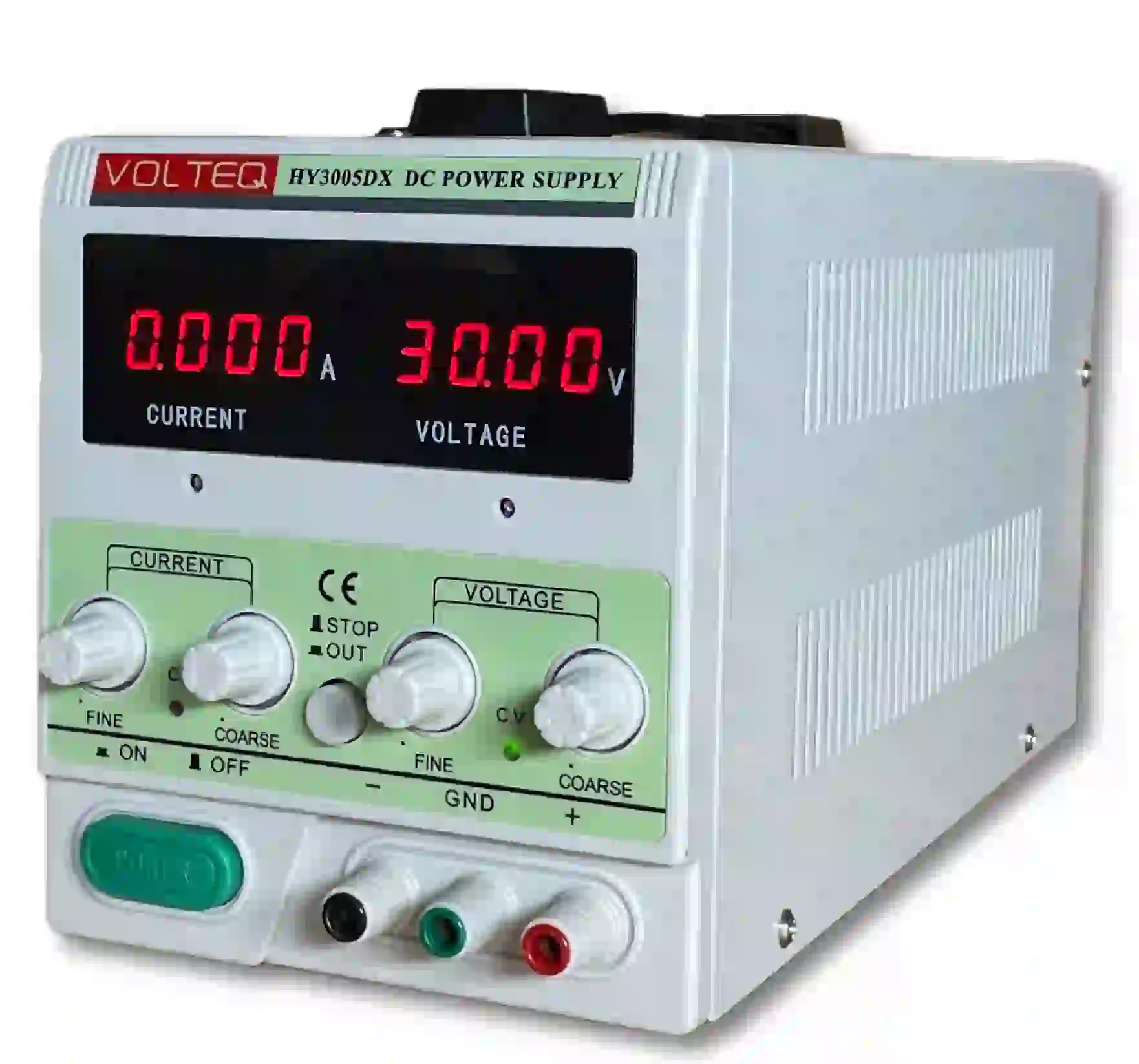

VOLTEQ HY3005DX is a lab grade DC regulated linear DC power supply; as an improved version of HY3005D, this power supply can be controlled to 10mV and 1 mA . This highly stable, high quality DC power supply has an output continuously adjustable at 0-30V DC and 0-5A. What's more, the unit is equipped with coarse and fine controls for adjusting the voltage and current outputs, making it extremely easy to set the output to your desired level. The unit comes with 2 bright LED displays, providing accurate readout for the voltage and current values.

Got a question? Call us at 408-622-9851.


Features & Specifications:

  • Adjustable outputs: 0-30V and 0-5A
  • Coarse and fine controls for both current and voltage outputs
  • Over-voltage and reverse-voltage protection

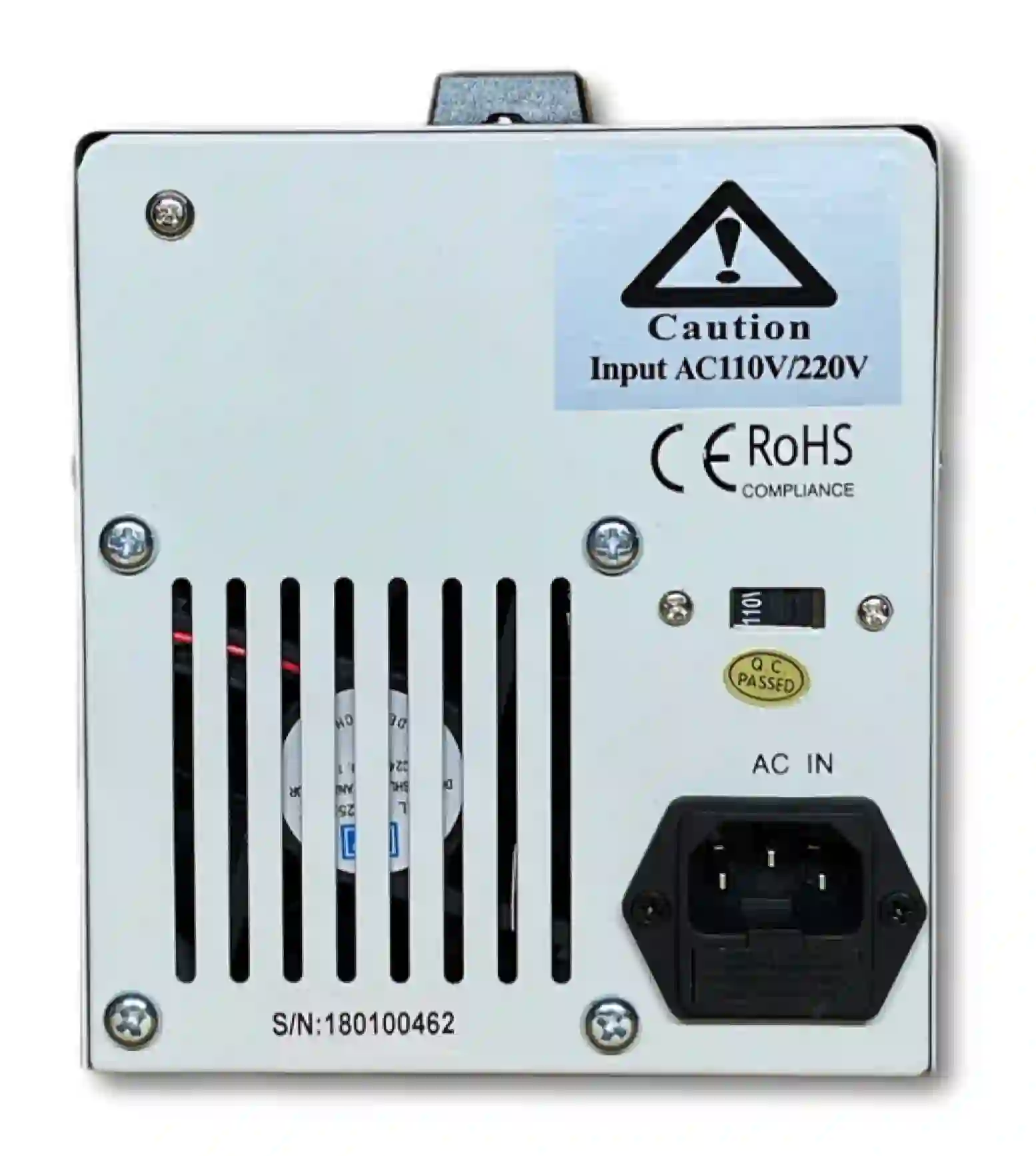

  • Input voltage: 110V/60Hz and 220V/50Hz switchable
  • Line regulation: CV <= 0.01% + 3 mV, CC <= 0.2% + 3 mA
  • Load Regulation: CV <= 0.01% + 3mV, CC <= 0.2% + 3 mA
  • Ripple noise: CV <= 0.5 mV RMS, CC <= 3 mA RMS
  • Recovery time: < 100 micro seconds
  • LED reading accuracy: +/-1% for voltage and +/-2% for current
  • Environment: 0-40C, relative humidity < 80%
  • Size: 10.6" x 5.0" x 5.7"
  • Weight: 9 lbs
  • Warranty: 1 year

 Linear Power Supply HY3005DX
 Linear Power Supply HY3005DX

Product Code: HY3005DX
