Programmable DC Power Supply HY5020EP 0-50V 0-20A With Arduino Nano

$600.00 $299.95

Manufacturer: Volteq

Stock Level: 11

Product Information



Volteq HY5020EP is basically the same as HY5020EX, except that it comes with built-in control and programming with Arduino Nano. If you are familiar with Arduino, writing software code to control this power supply is a piece of cake. We supply a sample code to let you set and read voltage and current output via USB, you can also use our softare to calibrate the power supply, generate a multi-step linear ramp, and run a fixed amp-minute operation. This power supply is ideally suited for battery charging/maintenance, DC/servo motors, anodizing and plating applications.

Got a question? Call us at 408-622-9851.


Features & Specifications:

  • Control: front panel or via Arduino Nano using USB or RS-485
  • Two level of control for both current and voltage outputs: coarse and fine for ease of use
  • Outputs: 0-50 V and 0-20 A
  • Protection: over-voltage and reverse-voltage protection
  • Input voltage: 110V AC and 220V AC switchable
  • Voltage Stabilization: <=0.2%
  •  Current Stabilization: <=0.5%
  • Load Regulation: <=0.3%
  • Ripple noise: CV <= 1%
  • LCD reading accuracy: +/-1% +/-1 digit
  • Environment: 0-40C, relative humidity < 90%
  • Size: 12" x 10" x 6"
  • Weight: 16 lbs
  • Warranty: 1 year

As an example, we have used our HY3010EP to charge a 12V battery for 500 seconds and let it disconnect, and using the power supply to log the voltage and current all the time. the result is shown in the last picture below. The picture shows the capability of our power supply, which can easily measure and maintain voltage to better than 10mV.

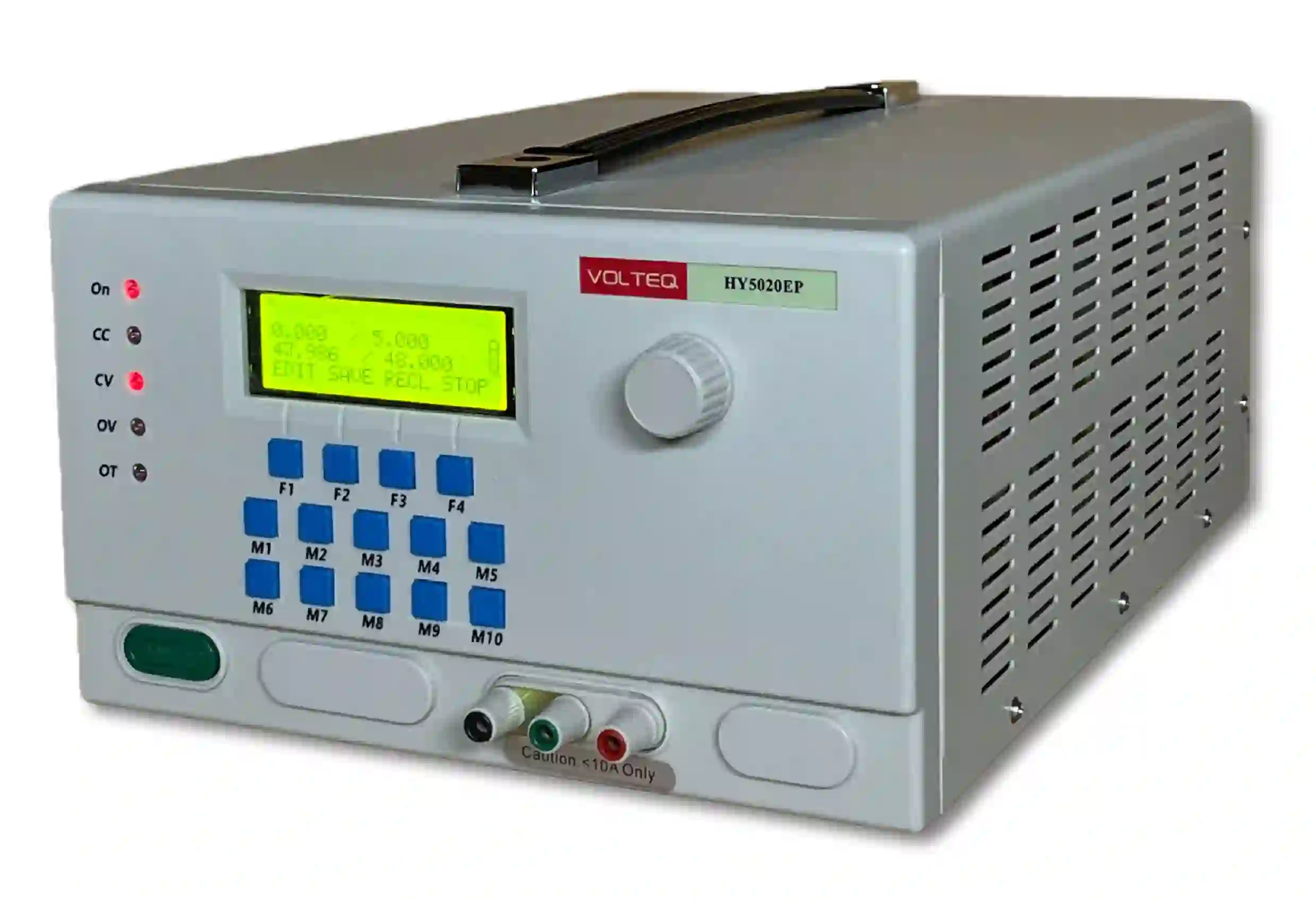

 Programmable Power Supply HY5020EP

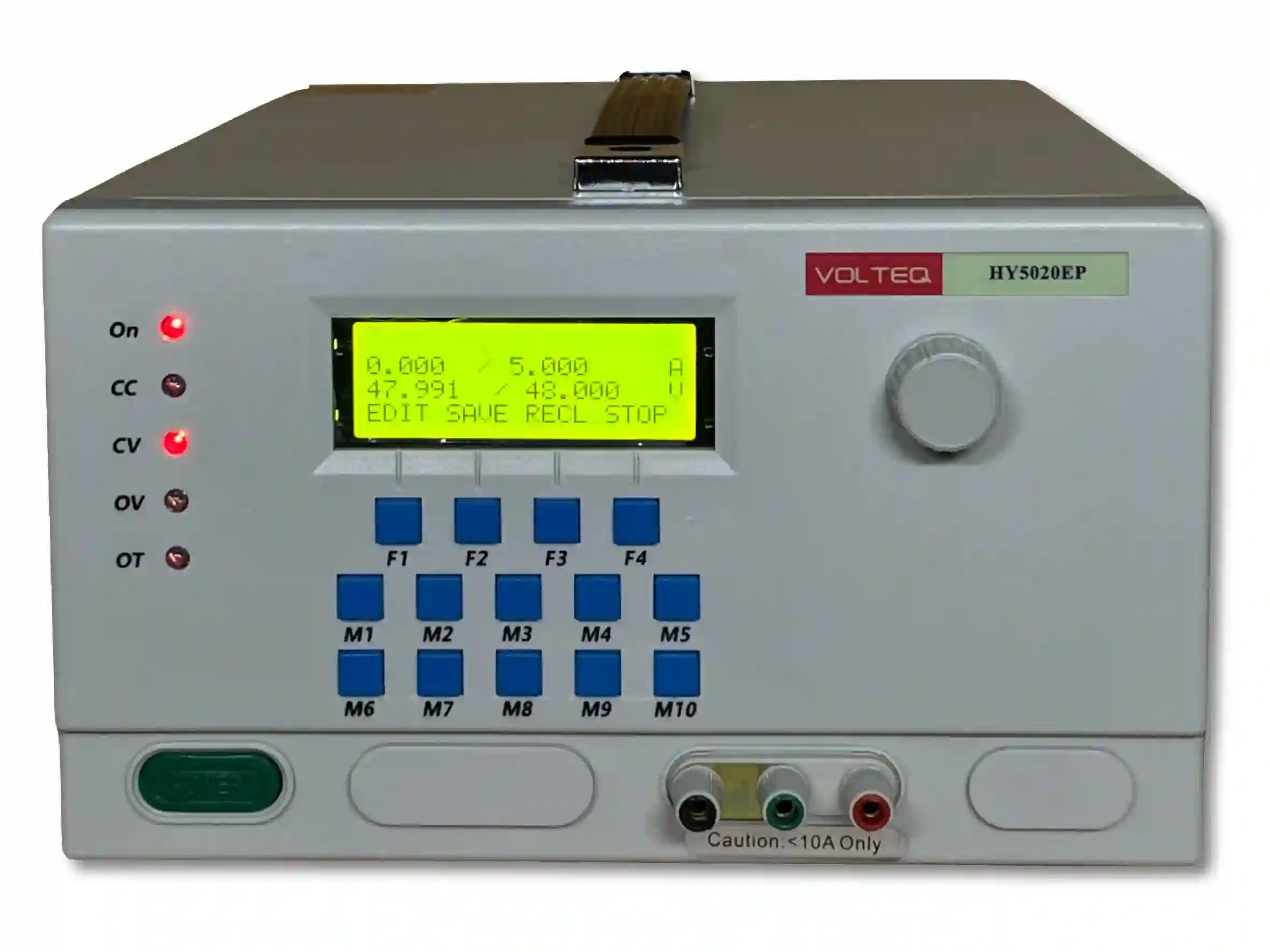

 Programmable Power Supply HY5020EP
 Switching Power Supply HY3010Ep

Product Code: HY5020EP

Customer Reviews

This product hasn't been reviewed yet. Write a review
